Learn about AKKO CS Switch, What is AKKO CS Switch?

What is AKKO CS Switch? This is a custom switch line developed by AKKO and KTT to satisfy users' passion for keyswitch experiences. A major difference between CS switch and AKKO switch v2 is the spring. The spring has a thicker coil, promising a unique and distinct experience for users.

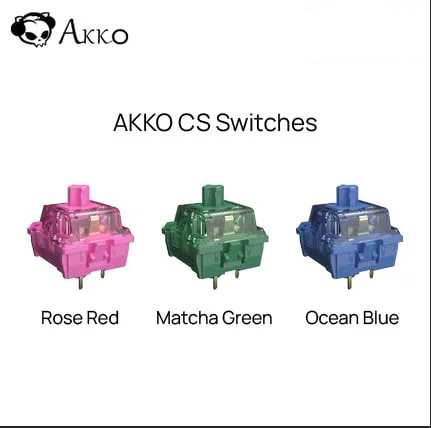

AKKO CS Switch – Ocean Blue

Ocean Blue is a tactile switch with a high barrier. Users will start to feel the barrier at 0.5mm with continuous feedback until 1.8mm. Therefore, Ocean Blue differs from brown/blue switches (switches with mid-barriers).

Tactile switch
End Force: 55gf ± 10gf
Total Travel: 4.0 ± 0.3mm
Pre-Travel: 1.9 ± 0.3mm
Tactile Position: 0.5 ± 0.3mm
Tactile Force: 45gf ± 5gf
AKKO CS Switch – Matcha Green

AKKO CS Switch - Matcha Green

          Linear switch

          End Force: 50gf ± 5gf

          Total Travel: 4.0 ± 0.3mm

          Pre-Travel: 1.9 ± 0.3mm

AKKO CS Switch – Rose Red

Compared to Matcha Green, Rose Red has a slightly lighter actuation force and a shorter travel distance.

Linear switch
End Force: 43gf ± 5gf
Total Travel: 3.5 ± 0.2mm
Pre-Travel: 1.9 ± 0.3mm

AKKO CS Switch – Radiant Red

• Linear switch, 3 pin
• Operating Force: 53gf ± 5gf
• Total Travel: 3.5 ± 0.5mm
• Pre-Travel: 1.9 ± 0.3mm

AKKO CS Switch – Lavender Purple

• Tactile switch, 3 pin
• Operating Force: 36gf ± 5gf
• Total Travel: 4.0 ± 0.5mm
• Pre-Travel: 1.9 ± 0.3mm
• Tactile Force: 50 ± 5gf

AKKO CS Switch – Vintage White

• Linear switch, 3 pin
• Operating Force: 35gf ± 5gf
• Total Travel: 4.0 ± 0.5mm
• Pre-Travel: 1.9 ± 0.3mm

A pack (45 switches) is priced at 250,000 VND and is expected to be available in Vietnam in May 2021. This translates to approximately 5,555 VND per switch, a very reasonable price given the performance and unique feel it offers to those seeking an exceptional typing experience.

Note: Due to the switch being quite tightly designed, there is no need for film when lubing the switch.
